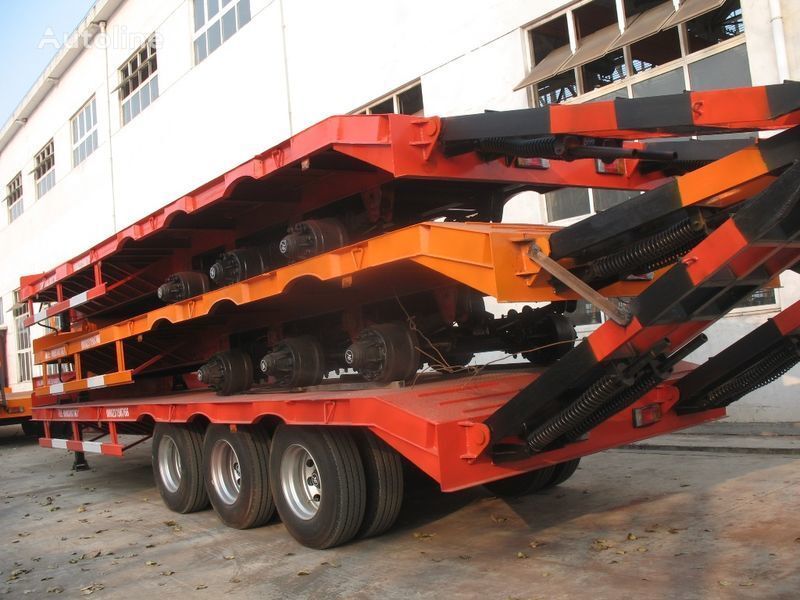

CHEREAU 40T.50T.60T.70T.80T semirremolque góndola rebajada nuevo

CHEREAU 40T.50T.60T.70T.80T semirremolque góndola rebajada nuevo
Foto: CHEREAU 40T.50T.60T.70T.80T semirremolque góndola rebajada nuevo
1/9
Comparar Añadido a favoritos PDF
9.990 US$
Precio sin IVA
≈ 8.509 €
Marca CHEREAU
Modelo 40T.50T.60T.70T.80T
Tipo semirremolque góndola rebajada
Año 01/2014
Primer registro 01/2014
Capacidad de carga 60000 kg
Peso neto 13000 kg
Peso bruto 133000 kg
Ubicación China shanghai
Fecha de publicación oct 20, 2017
Id. de Autoline MQ4941
Descripción
Dimensiones totales 13 m × 3 m × 1.5 m
Carrocería
Dimensiones de la carrocería 9.6 m × 3 m × 1 m
Ejes
Ejes 3
Suspensión resorte/neumática
Estado
Estado nuevo
Inspección técnica 01.2017
Descripción
Color amarillo
Disponible 19
Información adicional: inglés
3 Axle Lowbed Trailer
Dimensions:13000*3000*1850
Tare Weight:7.5T
Payload:60T

lowbed/lowbed truck trailer, 3 axle low bed trailer, excavator carrying trailer
1.Factory sales
2. Lowest price
3.High Quality
4. Best service
5.Passed ISO and CCC certification

Specification:
Type

Low bed semi trailer
Dimensions:



(LxWxH)
13000×3000×3150mm(Outside)
Weight:



Tare Weight
5.5T-10T

Payload
30T-60T

Axle Weight Load
13T/14T/16T/20T per axle
Specification:


Axle number
Three

Axle specs.
FUWA /BPW brand

Suspension
mechanical suspensions

King Pin
Jost 50#/90# traction pin

Landing Leg support
Jost D200T / fuwa 28 ton

Rim
9.00*22.5 Zhengxing Brand 12 pieces

Steel Spring
10pieces
Tire:



Tire specs.
12.00R22.5 Triangle Brand

Number of Tire
12pieces

Spare Tire Carriers
2 pieces
Frame:
(specs. and materials)
Main frame is height 480-500mm .

Frame Beam
Upper and lower plate is20mm,middle is8mm(Double plate).
height is 480-500 mm,Material is Q345 low alloy steel

Frame Floor
The Thickness is 3mm flat bed,Material is Q235 Carbon Steel
Brake:



Brake
Kemi Brand of China

Brake Chamber
Two double and two single chamber

ABS
Kemi Brand of China(4S/2M)
Electrical:



Voltage
24V

Receptacle
7 ways(7 wire harness)
Painting process:


Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime,
2 coats of final paint
Miscellaneous:


Side Guard
According to the requirement of the buyer
Major Export Market:


Russia, Mongolia, Tanzania, Kenya, etc.Europe , Asia and some Africa countries
Esta oferta es de caracter informativo. Para obtener más detalles, póngase en contacto con el vendedor.
Preguntar al vendedor
