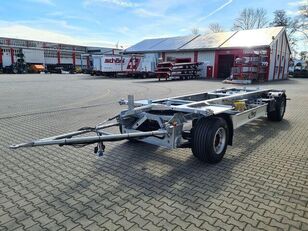

Fliegl ZWP 180 Mega-EL remolque chasis nuevo

Description: Trailer Swap Chassis
Functionality: fully functional
Location: Oberpöllnitzer Straße 8, 07819 Triptis, Deutschland
for 7.15 m and 7.45 m swap bodies (Note: When used in combination with the impact guard, the guard protrudes beyond the 7.15 m swap body)
Air reservoir capacity: 208 liters
Caution: The trailer may only be towed by tractor units that ensure the effectiveness of the ABS!
Achsenkonfiguration: 2 axles
Customized Transport Solution
Configure your Fliegl vehicle to meet your specific requirements. The vehicle shown is an example. Production and equipment are customized according to customer specifications
*Chassis with swivel turntable
Fine-grained steel welded construction
Fliegl “V-Stream” frame
Front stop
longitudinally adjustable and foldable
Pair of removable guide rollers
front and rear
4 container locks with sturdy arms based on 20" dimensions
Note! Not suitable for 20" containers
or only possible if the container has a tunnel or opening at the front center measuring approx. 200 mm in length and 800 mm in width!
Swivel mount with heavy-duty ball bearing swivel ring
Wheel chocks with holders
Aluminum side impact protection
Side impact protection set inward for optimal clearance to the swap body supports
Steel underrun protection
Underrun protection shortened for optimal clearance to the swap body supports
lighting system mounted in a protected position
Quarter-shell fenders in front and half-shell fenders in the rear
Includes mud flaps for fenders
Large Fliegl mud flap mounted transversely on the underrun protection at the rear
Drawbar with certified 40 mm drawbar eye
*Axles + Suspension
SAF disc brake axles
“Laser-measured axles/chassis” reduces tire wear and fuel consumption
*Brake System
2-line compressed air brake system
Nsda T Upszfp S Dodnswk
Color-coded lines for easy maintenance
Spring-loaded parking brake
2 non-reversible coupling heads at the front
with connecting lines to the tractor unit
24-volt EBS
electronic braking system with EBS connector at the front
with connecting cable
with lift & lower valve + auto-reset function
Axle load detection via EBS CAN bus signal
for display in the cab
the truck must be equipped accordingly
“TPMS” tire pressure monitoring system according to ECE R 141
display in the towing vehicle via EBS
*Wheels and tires
445/45 R19.5"
brand selected by the manufacturer
Steel rims
factory silver
*Electrical system
24 volts
multi-chamber lights
yellow LED side lighting
Yellow LED side lighting linked to the turn signals “Flashing side lights”
2 white front position lights
2 white/red rear lane-keeping lights
1 x 15-pin connector at the front
with connecting cable
additional LED work light(s) at the rear
activated via the reverse light
LED work light at the front
centered between the cross members
shining toward the rear
activated via the reverse light
*Country of registration/license plates
Germany
with DEKRA approval and certification (in accordance with §13 EG - FGV)
24/7 service hotline
prepared for single-line license plate holder
Contour marking with reflective strips in accordance with ECE R 048
white on the sides and red at the rear
*Chassis galvanized or painted in colour of choice
